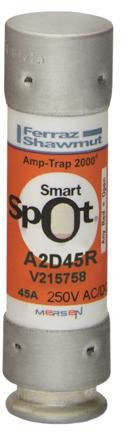

Ferraz Shawmut A2D45R Fuses EA

(No reviews yet) Write a Review
0.81" x 3", 250 VAC/VDC, 45 A, 200 kA AC/100 kA DC Interrupt, Fiberglass Body, Tin Plated Copper Ferrule Terminal, Clip Mount, Class RK1, Rejection, Current Limiting, Time Delay, Low Vage UL Power Fuse with SmartSpot Visual Indicator (10 per Pack)
MPN:
A2D45R
UPC:
78200199092
SKU:
F16-3697
Stock images are representative
MSRP $38.17
Surplus $15.03

Condition: Learn about our conditions

Product Conditions

Surplus

Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.

Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.

Used

Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.

Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.

Repackaged

Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.

Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.

Description

SKU:  F16-3697

Brand:  Ferraz Shawmut

MPN:  A2D45R

UPC:  78200199092

Shipping Weight:  0.15 lbs.

Shipping Height:  1.00 In.

Shipping Length:  3.00 In.

Shipping Width:  1.00 In.

Product Notes:

Long Description:  Ferraz Shawmut A2D45R Fuses EA

View AllClose

Specifications

CAD Drawings:
Mersen_00173_1_CAD.pdf
Current Rating:
45 A
Interrupting Rating:
200 kA (AC), 100 kA (DC)
Series:
A2D-R
Data Sheet:
Mersen_00050_PF8_PF9_DATA.pdf
Characteristics:
Time Delay
Terminal Type:
Ferrule
Catalog:
Mersen_00086_189_CAT.pdf
Type:
Class RK1
TS PIK:
110477831
Voltage Rating:
250 VAC/DC
Length:
3
Diameter:
0.81
Approval:
UL 248/248-12, CSA C22.2
