Ferraz Shawmut

Ferraz Shawmut A2D20R Fuses

(No reviews yet) Write a Review
0.56" x 2", 250 VAC/VDC, 20 A, 200 kA AC/100 kA DC Interrupt, Fiberglass Body, Tin Plated Copper Ferrule Terminal, Clip Mount, Class RK1, Rejection, Current Limiting, Time Delay, Low Vage UL Power Fuse (10 per Pack)
MPN:
A2D20R
UPC:
78200199084
SKU:
F16-3690

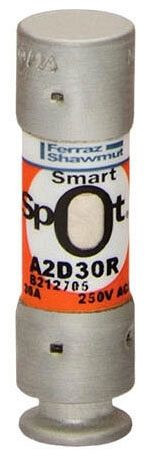

Stock images are representative
MSRP $20.04
Surplus $7.89

Condition: Learn about our conditions

Product Conditions

Surplus

Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.

Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.

Used

Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.

Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.

Repackaged

Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.

Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.

Description

SKU:  F16-3690

Brand:  Ferraz Shawmut

MPN:  A2D20R

UPC:  78200199084

Shipping Weight:  0.05 lbs.

Shipping Height:  1.00 In.

Shipping Length:  2.00 In.

Shipping Width:  1.00 In.

Product Notes:

Long Description:  Ferraz Shawmut A2D20R Fuses

View AllClose

Specifications

Series:
A2D-R
Data Sheet:
Mersen_00050_PF8_PF9_DATA.pdf
CAD Drawings:
Mersen_00173_1_CAD.pdf
Interrupting Rating:
200 kA (AC), 100 kA (DC)
Type:
Class RK1
Current Rating:
20 A
Terminal Type:
Ferrule
Characteristics:
Time Delay
Catalog:
Mersen_00086_189_CAT.pdf
TS PIK:
110477826
Approval:
UL 248/248-12, CSA C22.2
Voltage Rating:
250 VAC/DC
Length:
2
Diameter:
9/16
View AllClose
