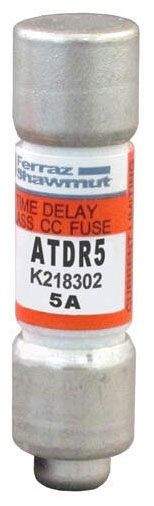

Ferraz Shawmut ATDR5 Fuses

(No reviews yet) Write a Review
0.41" x 1.5", 600 VAC, 300 VDC, 5 A, 200 kA Interrupt Rating, GMG Body/Insulating, Tin Plated Copper Connection/Terminal, Ferrule Terminal, Clip Mount, Class CC, Low Vage, Current Limiting, Time Delay Fuse
MPN:
ATDR5
UPC:
78200190102
SKU:
F16-3534
Stock images are representative
MSRP $40.90
Surplus $16.26

Condition: Learn about our conditions

Product Conditions

Surplus

Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.

Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.

Used

Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.

Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.

Repackaged

Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.

Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.

Description

SKU:  F16-3534

Brand:  Ferraz Shawmut

MPN:  ATDR5

UPC:  78200190102

Shipping Weight:  0.20 lbs.

Shipping Height:  1.00 In.

Shipping Length:  2.00 In.

Shipping Width:  2.00 In.

Product Notes:

Long Description:  Ferraz Shawmut ATDR5 Fuses

View AllClose

Specifications

Current Rating:
5 A
Catalog:
Mersen_00180_PF24_PF25_CAT.pdf
CAD Drawings:
Mersen_00134_1_CAD.pdf
Type:
Class CC Rejection
Series:
ATDR
Interrupting Rating:
200 kA (AC), 100 kA (DC)
Characteristics:
Time Delay
Terminal Type:
Ferrule
TS PIK:
110477105
Length:
1.5
Diameter:
0.41
Voltage Rating:
600 VAC 50/60 Hertz, 300 VDC
