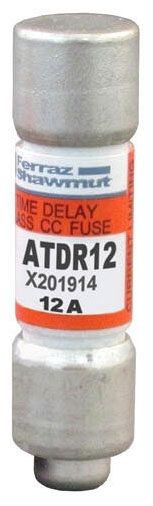

Ferraz Shawmut ATDR12 Fuses

(No reviews yet) Write a Review
0.41" x 1.5", 600 VAC, 300 VDC, 12 A, 200 kA AC/100 kA DC Interrupt, GMG Body, Tin Plated Copper Ferrule Terminal, Clip Mount, Class CC, Time Delay, Power Fuse
MPN:
ATDR12
UPC:
78200190108
SKU:
F16-3527
Stock images are representative
MSRP $27.18
Surplus $10.36

Condition: Learn about our conditions

Product Conditions

Surplus

Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.

Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.

Used

Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.

Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.

Repackaged

Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.

Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.

Description

SKU:  F16-3527

Brand:  Ferraz Shawmut

MPN:  ATDR12

UPC:  78200190108

Shipping Weight:  0.05 lbs.

Shipping Height:  1.00 In.

Shipping Length:  2.00 In.

Shipping Width:  1.00 In.

Product Notes:

Long Description:  Ferraz Shawmut ATDR12 Fuses

View AllClose

Specifications

Series:
ATDR
Current Rating:
12 A
Terminal Type:
Ferrule
Characteristics:
Time Delay
CAD Drawings:
Mersen_00134_1_CAD.pdf
Data Sheet:
Mersen_00064_1_2_DATA.pdf
Interrupting Rating:
200 kA (AC), 100 kA (DC)
Catalog:
Mersen_00086_194_CAT.pdf
Type:
Class CC Rejection
TS PIK:
110477110
Voltage Rating:
600 VAC, 300 VDC
Length:
1.5
Diameter:
0.41
