Mersen

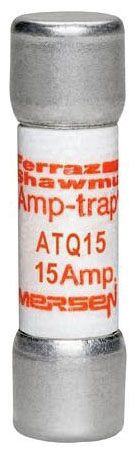

Mersen ATQ15 Fuses

(No reviews yet) Write a Review
0.41" x 1.5", 500 VAC, 15 A, 10 kA Interrupt, GMG Body, Tin Plated Copper Ferrule Terminal, Clip Mount, Time Delay
MPN:
ATQ15
UPC:
78200190460
SKU:
F16-2167
Stock images are representative
MSRP $42.00
Surplus $14.83

Condition: Learn about our conditions

Product Conditions

Surplus

Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.

Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.

Used

Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.

Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.

Repackaged

Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.

Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.

Description

SKU:  F16-2167

Brand:  Mersen

MPN:  ATQ15

UPC:  78200190460

Shipping Weight:  0.20 lbs.

Shipping Height:  1.00 In.

Shipping Length:  2.00 In.

Shipping Width:  2.00 In.

Product Notes:

Long Description:  Mersen ATQ15 Fuses

View AllClose

Specifications

Series:
ATQ
Approval:
UL 248-14
Approval:
CSA C22.2
Volts:
500 VAC 50/60 Hertz
Amps:
32 A
Interrupting Rating:
10 kA (AC)
Terminal Type:
Ferrule
Length:
1-1/2
Diameter:
13/32
Characteristics:
12 Second Time Delay (200 Percent Rated Load)
Catalog:
Mersen_00086_198_CAT.pdf
Data Sheet:
Mersen_00067_MF2_DATA.pdf
CAD Drawing:
Mersen_00136_1_CAD.pdf
Current Rating:
15 A
CAD Drawings:
Mersen_00136_1_CAD.pdf
TS PIK:
110477212
Voltage Rating:
500 VAC 50/60 Hertz
