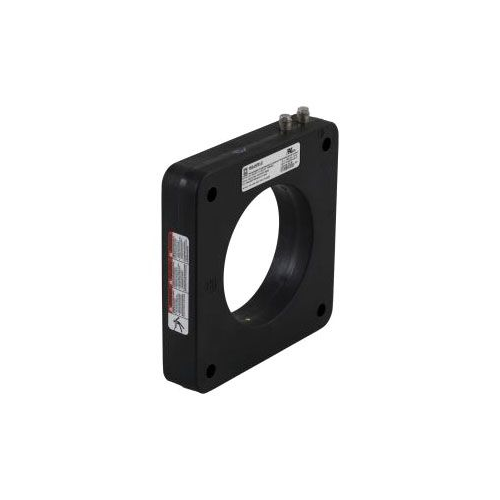

Square D 170R-801 Current Transformers 800:5A 600V

(No reviews yet) Write a Review
4-1/4" Window, 600 V, 800/5 Current Ratio, 25 to 400 Hz, 1-Phase, Screw Clamp Terminal, Window
MPN:
170R-801
UPC:
785901037279
SKU:
T22-1512
Stock images are representative
MSRP $670.00
Surplus $184.52

Condition: Learn about our conditions

Product Conditions

Surplus

Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.

Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.

Used

Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.

Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.

Repackaged

Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.

Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.

Description

Square D 170R-801 Current Transformers 800:5A 600V​

ARCA SKU:  T22-1512

Brand:  Square D

MPN:  170R-801

UPC:  785901037279

Shipping Weight:  4.50 lbs.

Shipping Height:  7.00 In.

Shipping Length:  9.00 In.

Shipping Width:  9.00 In.

Product Notes:

Long Description:  Square D 170R-801 Current Transformers 800:5A 600V

Disclaimer: ARCA Supply is not an authorized distributor, reseller or representative of any manufacturer, brand or product listed.  All product names, trademarks, brands and logos are the property of their respective owners.  The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.  All items sold by ARCA Supply are covered under ARCA Supply's warranty and not the manufacturer warranty.

View AllClose

Specifications

Series:
170R
Type:
Window
Volts:
600 V
Application:
Metering
Application:
Control Relaying
Wire Size:
10 to 32 AWG
Base Type:
Mounting Bracket
Housing Shape:
Square
Accuracy:
0.3 (B0.1/B0.2/B0.5)
Accuracy:
0.6 (B0.9)
Accuracy:
1.2 (B1.8)
Accuracy:
C10
Window Size:
4.25 Inch Diameter
Current Ratio:
800:5
BIL Rating:
10 Kilovolt
Burden:
B0.1/B0.2/B0.5/B0.9/B1.8
Rating Factor:
1 at 55 Deg C
Rating Factor:
1.33 at 30 Deg C
Catalog:
SchneiderElectric-SquareD_03371_6_11_CAT.pdf
Data Sheet:
SchneiderElectric-SquareD_08334_1_DATA.pdf
