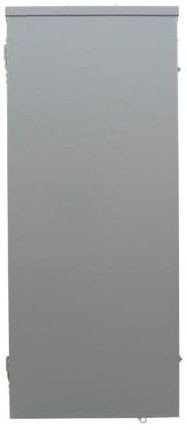

Eaton CHP32B200R Loadcenters and Panelboards CH 200A 240V 50/60Hz 1Ph 3Wire 64Cir 32Sp NEMA 3R

(No reviews yet) Write a Review
120/240 VAC, 1-Phase, 200 A, 25 kA, 3-Wire, 64-Circuit, 32-Space, X6R Enclosure Size Designation, NEMA 3R, Outdoor, Sandalwood Painted 16 Gauge Galvanized Sheet Steel Enclosure, Silver Flash Plated Copper Bus, Insulated/Bondable Split Plug-On Neutral
MPN:
CHP32B200R
UPC:
7.87E+11
SKU:
L19-2582
  • Eaton CHP32B200R Loadcenters and Panelboards CH 200A 240V 50/60Hz 1Ph 3Wire 64Cir 32Sp NEMA 3R
  • Eaton CHP32B200R Loadcenters and Panelboards CH 200A 240V 50/60Hz 1Ph 3Wire 64Cir 32Sp NEMA 3R
  • Eaton CHP32B200R Loadcenters and Panelboards CH 200A 240V 50/60Hz 1Ph 3Wire 64Cir 32Sp NEMA 3R
  • Eaton CHP32B200R Loadcenters and Panelboards CH 200A 240V 50/60Hz 1Ph 3Wire 64Cir 32Sp NEMA 3R
Stock images are representative
MSRP $1,820.00
Surplus $811.74
— You save $1,008.26

Condition: Learn about our conditions

Product Conditions

Surplus

Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.

Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.

Used

Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.

Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.

Repackaged

Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.

Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.

Description

SKU:  L19-2582

Brand:  Eaton

MPN:  CHP32B200R

UPC:  786689058678

Shipping Weight:  37.15 lbs.

Shipping Height:  6.00 In.

Shipping Length:  36.00 In.

Shipping Width:  16.00 In.

Product Notes:

Long Description:  Eaton CHP32B200R Loadcenters and Panelboards CH 200A 240V 50/60Hz 1Ph 3Wire 64Cir 32Sp NEMA 3R

View AllClose

Specifications

Type:
Main Breaker
Approval:
UL 50/67
Size:
14.31 Inch Width x 34 Inch Depth x 5.19 Inch Height
Volts:
120/240 VAC
Amps:
32 A
Interrupting Rating:
25 kA
Enclosure:
NEMA 1
Enclosure:
Outdoor
Neutral Type:
Insulated/Bondable Split
Circuit Configuration:
1-Phase 3-Wire
Bus Material:
Silver Flash Plated Copper
Maximum Number of Circuits:
64
Enclosure Size Designation:
X6R
Maximum Number of Spaces:
32
Feed Location:
Top/Bottom
Main Wire Size:
2 AWG to 300 KCMIL (Copper/Aluminum)
Main Breaker Type:
CH
Breaker Mounting:
Plug-On
Catalog:
Eaton_46524_V1T1_2-V1T1_5_V1T1_7_CAT.pdf
