Square D

Square D BDA261001 Molded Case Breakers (MCCBs)

(No reviews yet) Write a Review
600 Star/347 VAC 50/60 Hz, 250 VDC, 100 A, 14 kA, 2-Pole, B-Frame, AB Phase, I-Line Connection Line Lug Load Terminal, Thermal Magnetic, Molded Case Circuit Breaker
MPN:
BDA261001
UPC:
78590104905
SKU:
C15-10632

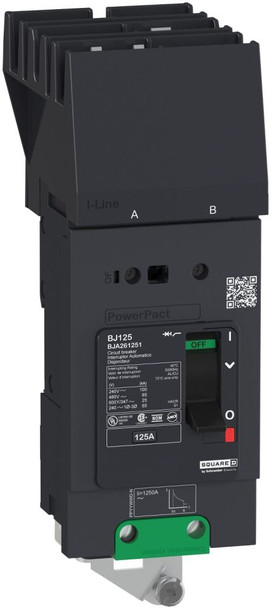

Stock images are representative
MSRP $850.00
Surplus $630.59

Condition: Learn about our conditions

Product Conditions

Surplus

Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.

Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.

Used

Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.

Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.

Repackaged

Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.

Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.

Description

SKU:  C15-10632

Brand:  Square D

MPN:  BDA261001

UPC:  78590104905

Shipping Weight:  0.00 lbs.

Shipping Height:  0.00 In.

Shipping Length:  0.00 In.

Shipping Width:  0.00 In.

Product Notes:

Long Description:  Square D BDA261001 Molded Case Breakers (MCCBs)

View AllClose

Specifications

TS PIK:
127013770
Voltage Rating:
600 Star/347 VAC 50/60 Hertz, 250 VDC
Type:
Thermal Magnetic
Frame Type:
B
Series:
BD
Current Rating:
100 A
Number of Poles:
2
Interrupting Rating:
14 kA at 600 Star/347 VAC, 10 kA at 250 VDC
Size:
2.13 Inch Width x 3.5 Inch Depth x 5.39 Inch Height
Catalog:
SchneiderElectric-SquareD_32357_7_31_7_32_CAT.pdf
CAD Drawings:
SchneiderElectric_29055_1_CAD.pdf
Installation/Operator:
SchneiderElectric-SquareD_01071_INST.pdf
Maximum AC Voltage Rating:
347 V
Maximum DC Voltage Rating:
250 V
Terminal Type:
I-Line Connection Line Lug Load
Prop 65 Warning:
Yes
Data Sheet:
SchneiderElectric-SquareD_34822_1-4_DATA.pdf
Country of Origin:
United States
View AllClose
