Eaton JDC3150W Molded Case Breakers (MCCBs) EA

(No reviews yet) Write a Review
600 VAC 50/60 Hz, 250 VDC, 150 A, 100 kA, 3-Pole, JDC Frame, Interchangeable Trip, Thermal Magnetic, Molded Case Circuit Breaker
MPN:
JDC3150W
UPC:
62103709290
SKU:
C15-9646

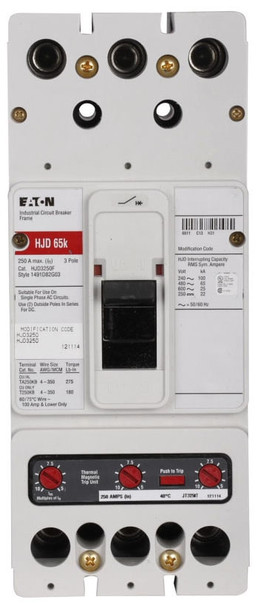

Stock images are representative
MSRP $6,466.00
Surplus $1,422.52

Condition: Learn about our conditions

Product Conditions

Surplus

Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.

Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.

Used

Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.

Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.

Repackaged

Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.

Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.

Description

SKU:  C15-9646

Brand:  Eaton

MPN:  JDC3150W

UPC:  62103709290

Shipping Weight:  9.75 lbs.

Shipping Height:  7.00 In.

Shipping Length:  13.00 In.

Shipping Width:  7.00 In.

Product Notes:

Long Description:  Eaton JDC3150W Molded Case Breakers (MCCBs) EA

View AllClose

Specifications

TS PIK:
119835367
Size:
4.125 Inch Width x 4.063 Inch Depth x 10 Inch Height
Interrupting Rating:
200 kA at 240 VAC, 100 kA at 480 VAC, 35 kA at 600 VAC (UL 489), 200 kA at 240 VAC, 100 kA at 380/415 VAC (IEC 157-1), 22 kA at 250 VDC (UL 489, IEC 157-1)
Series:
C, JDC
CAD Drawings:
Eaton_10153_1_CAD.pdf
Voltage Rating:
240/480/600 VAC (UL 489), 240/380/415 VAC (IEC 157-1), 250 VDC (UL 489, IEC 157-1)
Type:
Molded Case, Thermal Magnetic, Interchangeable Trip Unit
Catalog:
Eaton_46579_V4T2_254_V4T2_255_V4T2_291-V4T2_298_CAT.pdf
Terminal Type:
Not Included
Number of Poles:
3
Maximum DC Voltage Rating:
250 V
Maximum AC Voltage Rating:
600 V
Current Rating:
150 A
Frame Type:
J
View AllClose
