Eaton HFD3225K Molded Case Breakers (MCCBs) HFD 3P 225A 600V 50/60Hz 3Ph F Frame

(No reviews yet) Write a Review
600 VAC 50/60 Hz, 250 VDC, 225 A, 65 kA, 3-Pole, Load Side Terminal, HFD Frame, Non-Interchangeable Trip Thermal Magnetic, Molded Case Circuit Breaker with High Magnetic Molded Case Switch
MPN:
HFD3225K
UPC:
782114860465
SKU:
C15-3876

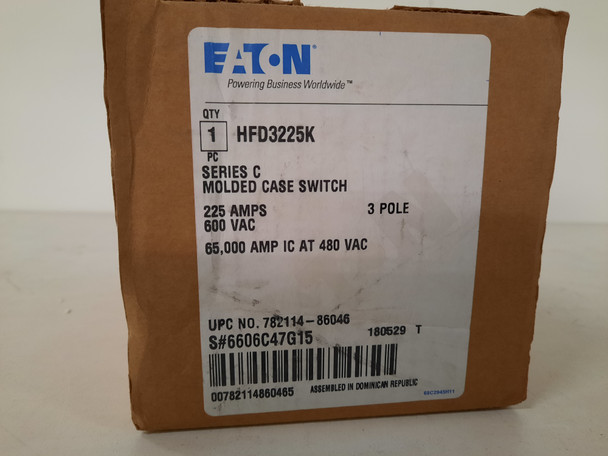

  • Eaton HFD3225K Molded Case Breakers (MCCBs) HFD 3P 225A 600V 50/60Hz 3Ph F Frame
  • Eaton HFD3225K Molded Case Breakers (MCCBs) HFD 3P 225A 600V 50/60Hz 3Ph F Frame
  • Eaton HFD3225K Molded Case Breakers (MCCBs) HFD 3P 225A 600V 50/60Hz 3Ph F Frame
Stock images are representative
MSRP $3,362.00
Surplus $1,372.97

Condition: Learn about our conditions

Product Conditions

Surplus

Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.

Parts from another distributor or wholesaler that were only removed from the original packaging for inspection and pictures. These parts have never been energized, installed, or modified in any way.

Used

Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.

Parts that show any sign of being energized, installed, assembled with other parts, or functional wear or corrosion. These parts are sold as-is and returns may not be accepted.

Repackaged

Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.

Parts from another distributor or wholesaler that are missing the original packaging. These parts have never been energized, installed, or modified in any way and will ship in an ARCA box.

Description

SKU:  C15-3876

Brand:  Eaton

MPN:  HFD3225K

UPC:  782114860465

Shipping Weight:  4.40 lbs.

Shipping Height:  5.00 In.

Shipping Length:  8.00 In.

Shipping Width:  5.00 In.

Product Notes:

Long Description:  Eaton HFD3225K Molded Case Breakers (MCCBs) HFD 3P 225A 600V 50/60Hz 3Ph F Frame

View AllClose

Specifications

Approval:
UL 489
Approval:
CSA C22.2
Amps:
225 A
Frame:
FD
Interrupting Rating:
100 kA at 240 V AC
Interrupting Rating:
65 Kiloamp at 480 Volt AC
Interrupting Rating:
25 Kiloamp at 600 Volt AC
Interrupting Rating:
22 Kiloamp at 250 Volt DC (UL)
Interrupting Rating:
100 Kiloamp at 220/240 Volt AC
Interrupting Rating:
65 Kiloamp at 380/415/440 Volt AC
Interrupting Rating:
25 Kiloamp at 500 Volt AC
Interrupting Rating:
22 Kiloamp at 250 Volt DC (IEC)
Maximum AC Voltage:
600 V
Maximum DC Voltage:
250 V
Poles:
3
Size:
4.13 Inch Width x 3.38 Inch Depth x 6 Inch Height
Terminal Type:
Molded Case
Type:
Thermal Magnetic
Type:
Non-Interchangeable
Volts:
480/600 VAC at 50/60 Hertz
Volts:
250 VDC
Series:
C, HFD
Frame Type:
FD
Current Rating:
225 A
Voltage Rating:
480/600 V AC, 250 V DC
Data Sheet:
Eaton_32336_1-12_DATA.pdf
CAD Drawings:
Eaton_21588_1_CAD.pdf
Installation/Operator:
Eaton_00091_INST.pdf
Number of Poles:
3
Catalog:
Eaton_46579_V4T2_254-V4T2_290_CAT.pdf
Maximum DC Voltage Rating:
250 V
Maximum AC Voltage Rating:
600 V
